Waffle Pads are manufactured from nitrile rubber in a range of types and thicknesses that allows for optimal loading and isolator performance. The “waffle” shape pad, Waffle Pads are specifically designed to maintain the proper shape factor for the pads when under load. For higher loads we can add a steel shim to further maintain shape factor.
Available in variety of densities please see the below table.

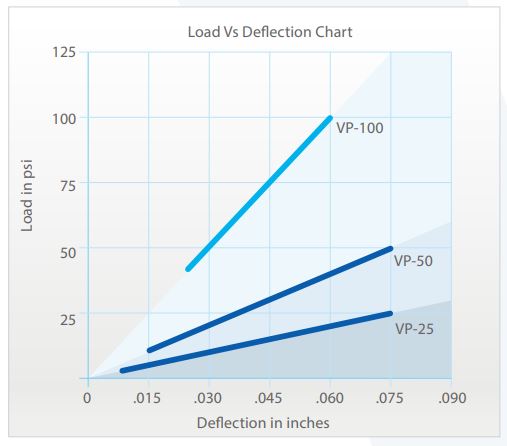

| Model | Maximum load (PSI) | Dimensions (Inches) | Thickness (Inches) |
|---|---|---|---|
| WP-25 | 25 | 18" x 18" | 5/16" |
| WP-50 | 50 | 18" x 18" | 5/16" |
| WP-100 | 100 | 18" x 18" | 5/16" |
| WP-200 | 200 | 18" x 18" | 1/2" |
| WP-300 | 300 | 18" x 18" | 1/2" |
Benchmark accepts no responsibility for individual results obtained. Everyone is strongly recommended to verify data and obtain their own independent test results. This data is subject to change without notice.
Waffle Pads Features:
- Increases machine accuracy and extends the life of machinery and tools
- Firmly anchors the machine to the floor, preventing creep
- Dampens vibration, shock and noise
- Can be reused when machines are moved or relocated
- Lower installation costs
- Easily cut and bonded when using the Benchmark approved glue system
- Isolates vertical and horizontal forces transfer to the structure
