Available in 4 different densities TBF-150, TBF-200, TBF-280 and TBF-310

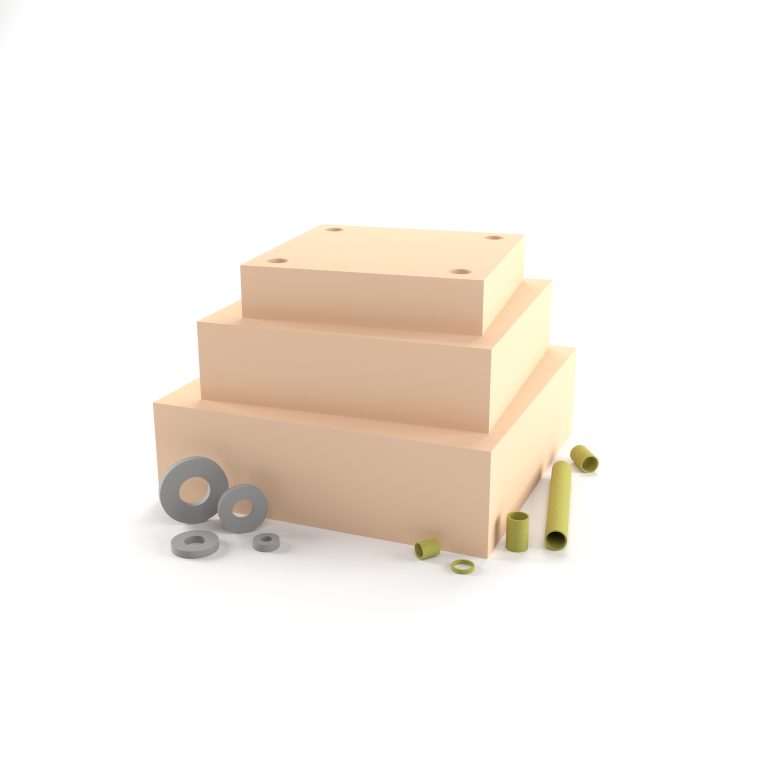

TBF Thermal Break features a specialized, rigid composition engineered for maximum thermal resistance. Engineered in multiple grades to accommodate specific load-bearing requirements, it provides a seamless thermal barrier for high-performance construction and cold storage environments.
Mechanical Properties TBF
| TBF Thermal Break Model | Density (LB/FT3) EN 1602 ASTM D1622 | Parallel Compressive Resistance @ 74F (PSI) | Fire Behavior | Initial Thermal Conductivity @ 70F (BTU-in/hr-ft2-F) | Operating Temperatures (F) |
|---|---|---|---|---|---|
| TBF-150 | 15.0 | 638 | DIN 4102 Class B3 | 3.10 | -328 / +176 |
| TBF-200 | 20.0 | 1044 | DIN 4102 Class B3 | 2.60 | -328 / +176 |
| TBF-280 | 28.0 | 2233 | DIN 4102 Class B3 | 1.9 | -328 / +176 |
| TBF-310 | 31.0 | 2379 | DIN 4102 Class B3 | 1.8 | -328 / +176 |
Benchmark accepts no responsibility for individual results obtained. Everyone is strongly recommended to verify data and obtain their own independent test results. This data is subject to change without notice.Benchmark accepts no responsibility for individual results obtained. Everyone is strongly recommended to verify data and obtain their own independent test results. This data is subject to change without notice.
NOTE TF High Density TBF should not be used in moment connections.
Benefits of TBF Thermal Break:
- Used to achieve LEED certification points
- Available in as little as 3 days production time
- Cost effective high R value solution
- Lightweight
- Does not rust
- Compatible with a wide variety of adhesives and grouts
Typical Applications for TBF Thermal Break:
- Structural Column Bases
- Cold Storage / Freezer Foundation Isolation
- Roof Anchors / HVAC / Heat Transfer Points
- Foundation / Slab Connections
- Isolation Blocks
