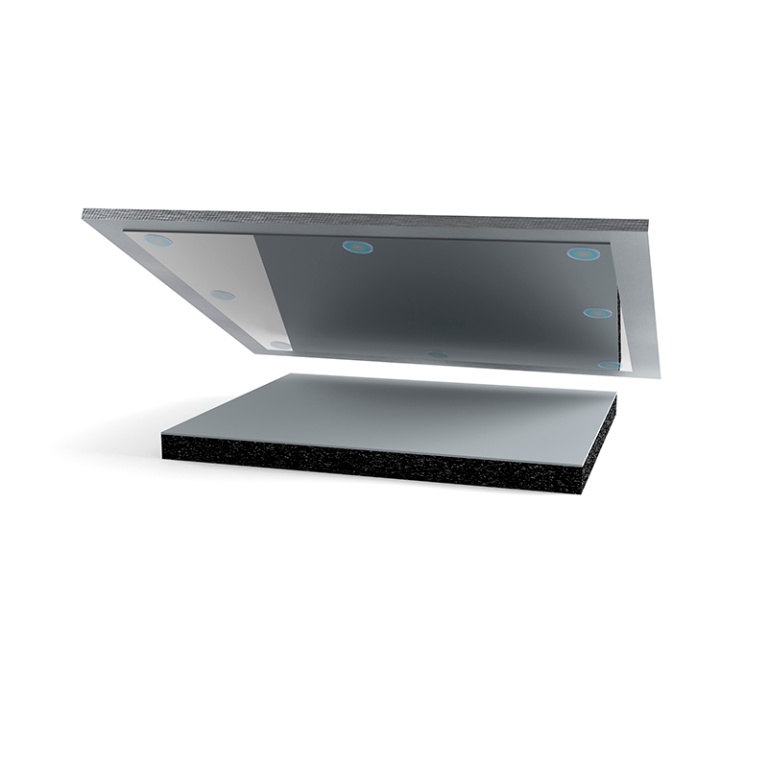

The STXR Series (ROF) is engineered for structural applications where movement must be strictly managed. While standard bearings allow for broad displacement, the ROF (Restrained One-Way Friction) design provides high-capacity sliding in a primary axis while offering rigid restraint in the transverse direction. This makes the STXR the definitive choice for structures requiring precise directional alignment under heavy loading.
Key Advantages
- Guided Directional Control: Integrated guide bars or recessed housing ensure movement occurs only along the intended axis, protecting the structure from lateral instability.
- High Load Concentration: Optimized for heavy vertical loads, the ROF design maintains a low profile while providing maximum support area.
- Reduced Friction Coefficient: Equipped with premium PTFE or UHMWPE sliding surfaces, the STXR minimizes the “stick-slip” effect during slow thermal expansions.
- Robust Restraint System: The “Restrained” mechanism is calculated to withstand significant horizontal shear forces, making it ideal for wind-loaded or seismic-prone structures.
Why Choose the STXR (ROF) Series?
Standard sliding bearings can lead to “walking” or misalignment over time if not properly guided. The STXR ROF eliminates this risk by combining the low-friction properties of a slide bearing with the mechanical security of a guide. It ensures that your structure moves exactly how it was designed to—no more, no less.
Request a Technical Consultation
Our engineering team can provide detailed CAD drawings and load-displacement calculations tailored to your specific project requirements.
Please fill out the below form to receive more information about Slide Bearings.
Our typical response time is under 2 hours.
